DESCRIPTION

Basic Info.

Wire Core Material	Bare Copper Wire
Certification	ISO, CCC
Model	Yh
Brand	Jinshui
Optional Features	Fire Resistant, Flame Retardant
Sheath Layer	Single or Double
Rated Voltage	1 Kv & Below
Working Temp.	90 Degrees
Transport Package	Wood Drum
Specification	180 cm * 110 cm * 180 cm
Trademark	Jinshui
Origin	China
HS Code	8544492100
Production Capacity	200 Km Per Month

Product Description

Standard
IEC 60245-6: Rubber insulated cables - rated voltages up to and including 450/750V, Part 6: Arc welding electrode cables

Application
This flexible 25mm2 welding cable is used for connecting the electrode to the welding machine. It can also be used for a variety of other applications that require extremely flexibility. The rubber sheath has good heat-resistant and oil-resistant performance.

Product Details
1) Conductor: stranded copper, 798/0.2mm
2) Sectional area: 25 mm2
3) Insulation: rubber, 1.8 mm
4) Overall diameter: 9.0 mm
5) Approx. weight: 152 kg/km
6) Max. DC resistance @ 20 ºC: 1.91 Ω/km
7) Double insulation layers of welding cable is also available.

Certificate

Packaging

Polyethylene film packaging 1) Usually used for cables with an overall diameter 10mm and below 2) 100 meters per roll or as per customer's requirements 3) Packaging dimension: 50cm * 50cm * 20cm or below 4) Weight: 30 kg/roll or below	Steel-wood or wood drum packaging 1) Used for cables with a overall diameter of 10mm and above 2) Drum size: 180cm * 180cm *110cm (different sizes are available according to packaging length) 3) Standard length: as per customer's requirements. 4) Wood wood lagging

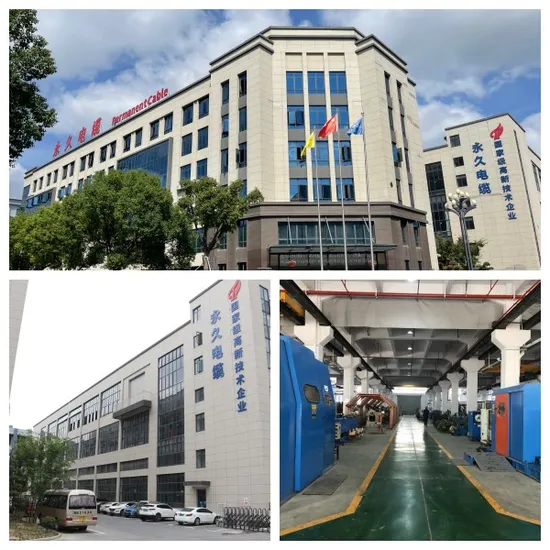

Factory

Service

1) Select the right cable as per customer's requirements
2) Design suitable packaging to guarantee safe and the most economic delivery
3) Provide installation and use guidance
4) Product quality guarantee under the normal use
